Motivation :

• learn about High Performance Computing.
• work with real problems.
• parallelization of data structures and algorithms which are not embarrassingly parallel.

Challenge

To adapt MTBDD data structure in order to be profitable in GPU architecture. Why ? MTBDD is a rooted, directed acyclic graph. A symbolic data structure which is apparently difficult to decompose in subproblems with coalesced memory access (GPU performance requirements).

Goal

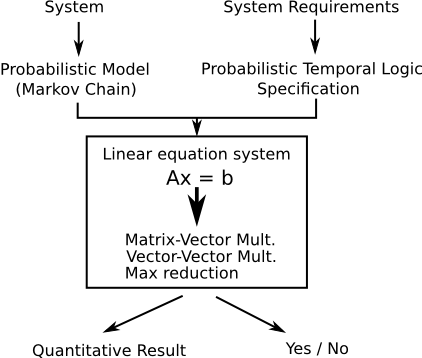

To improve performance of DTMC and CTMC system verification on PRISM model checker without a big impact in memory usage.

(Discrete-Time Markov Chains and Continuos-Time Markov Chains)

• Parallelization advantage $\to$ Iteration k+1 depends on iteration k
• Drawbacks $\to$ stores 2 solution vectors, more iteration for convergence than G-S.

Method

$$\mathbf{A} \underline{x} = \underline{b} \;\; \to \;\; \mathbf{A} = \mathbf{D} + \mathbf{R} \;\;\;\; where \;\;\;\; \mathbf{D} = Diagonal$$

In each iteration

$$\underline{x}^{k+1} = \mathbf{D}^{-1} (\underline{b} - \mathbf{R} \underline{x}^{k})$$ $$max ( \frac{| \underline{x}^{k+1} - \underline{x}^{k} |}{\underline{x}^{k}} ) < epsilon \;\; or \;\; max ( | \underline{x}^{k+1} - \underline{x}^{k} | ) < epsilon$$

Algorithm

1. Matrix - vector product - ($\underline{res} = \mathbf{R} \underline{x}^k$)
2. vector - vector operations - ($\mathbf{D}^{-1} (\underline{b} - \underline{res})$)
3. max reduction

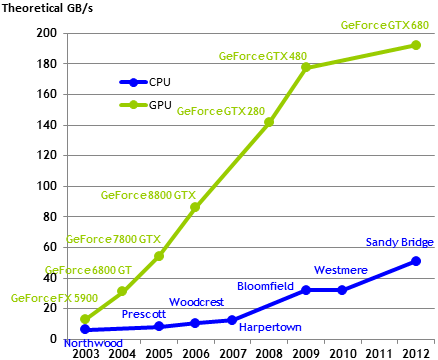

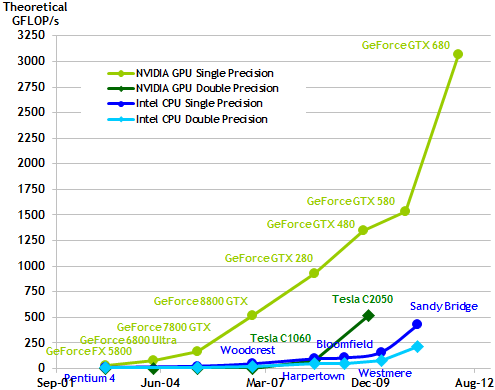

• Old figures ---> new NVIDIA Keplar architecture over 1TFLOPS (floating operations per second) on double presicion

3 key abstractions

• a hierarchy of thread groups
• shared memory
• barrier synchronization

Those guide the programmer to:

• Divide de problem in coarse sub-problem that can be solved independently in parallel by blocks of threads
• Divide each sub-problem into finer pieces that can be solved cooperatively in parallel by all threads within the block using share memory and synchronization primitives

Also enable automatic scalability, i.e. each block of threads can be scheduled on any of the available multiprocessors within a GPU, in any order, concurrently or sequentially

Define a especial kind of function call kernel, that, when called, is executed N times in parallel by N differents CUDA threads (programmer defines N)

• Thread Hierarchy :

  • Thread are organized in a, 1-dim, 2-dim or 3-dim block of threads.

  • Blocks are organized in a, 1-dim, 2-dim or 3-dim grid of blocks.

  • Thread blocks are required to execute independently : any order, in parallel or in series (allow scalability)

  • Threads within a block can cooperate using some (fast) shared memory and by synchronizing their execution to coordinate memory accesses.

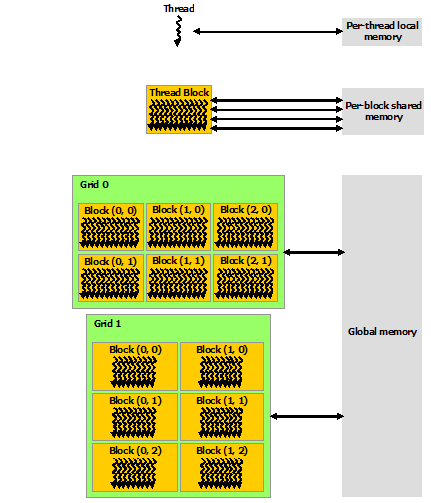

• Memory Hierarchy

• Implements many independients cores or Streaming Multiprocessors (SMs).
• In a kernel execution blocks are distributed between availables SMs.
• Block of threads are divided in groups of 32 parallel threads called warps.
• Thread in a warps executes the same instruction at the same time (SIMD).
• If threads of a warp diverge via a data-dependent conditional branch, the warp serially executes each branch path taken, disabling threads that are not on that path.
• Different warps execute independently.
• Warp context is mantained by the multiprocesor during the entire lifetime of the warp.
• Switching from one execution context to another has no cost (multiprocesor scheduler)
• Memory access latency can be hidden with calculations.

• Maximize parallel execution to achieve maximum utilization
  • many warps inside SMs
• Optimize memory usage to achieve maximum memory throughput
  • coalesced memory access

(rooted, directed acyclic graph)

An MTBDD represents a function $f:\mathbb{B}^{n} \to \mathbb{R}$ where variables are ordered: $x_1, \dots , x_n \in \mathbb{B}$, $x_1 < .. < x_n$

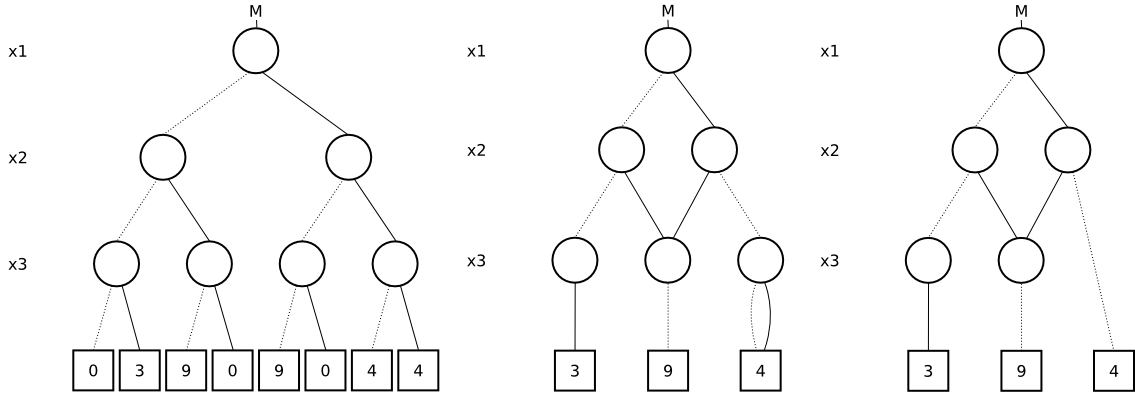

The reason that MTBDDs can often provide compact storage is because they are stored in a reduced form.

• if node m and m' are idential (var(m) == var(m'), then(m) == then(m'), else(m) == else(m')) only one copy of the node is stored. Call sharing of nodes
• if a node m satisfies then(m) == else(m), it is removed and any incoming edges from levels above are redirected to its unique child. Call skipped level

It results in a cononical form.

Map matrix or vector indices into a their boolean representation.

Define,

$enc : Integer \to \mathbb{B}^{n}$ is an encoding function and

$f : \mathbb{B}^{n} \times \mathbb{B}^{n} \to \mathbb{R}$ is an MTBDD function

Then,

$M(i, j) = f(enc(i), enc(j)) \;\;\; \forall i,j : 0 \leq i,j < 2^{n}$

• Take as matrix size the first power of two greater than the real dimension. Complete the rest of entraces with zeros.
• size of the final structure depends on the order of the variables.
• if matrix representation interleaves row and columns variables, e.i $f(r_0, c_0, r_1, c_1 ..., r_n, c_n)$, the resulting MTBDD is more compact and has an easier access pattern.

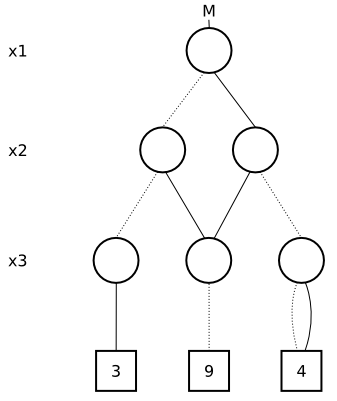

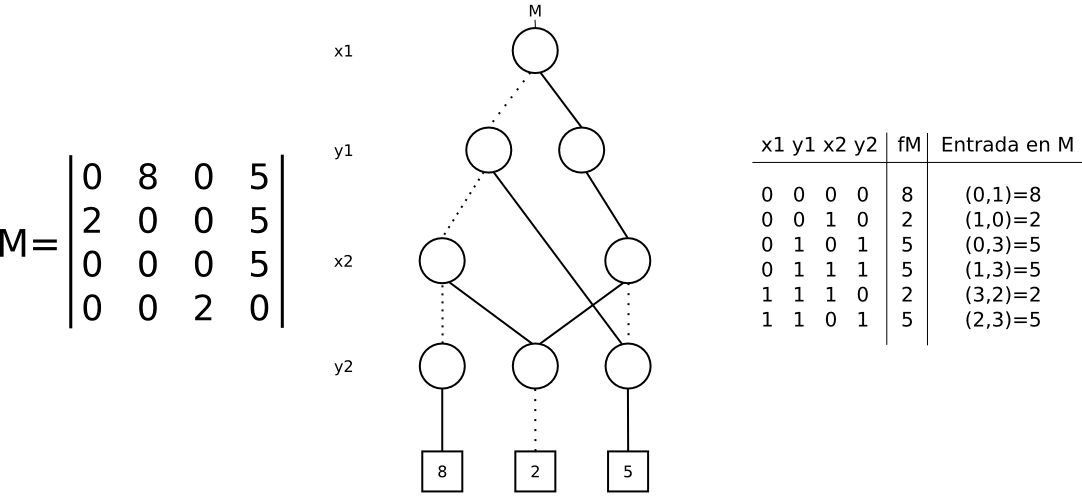

Example

The transition matrix is represented with an MTBDD

Vectors are represented with arrays

• Problem to solve

  • product of MTBDD matrix and array vector

• Algorithm :

  • DFS from root to each terminal node, construct row and column indices and get the terminal value. "(r, c) = v"
  • res[r] := res[r] + v . b[c]

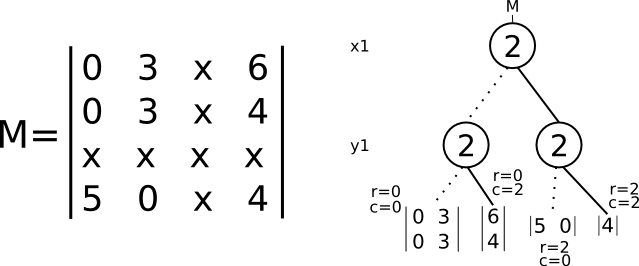

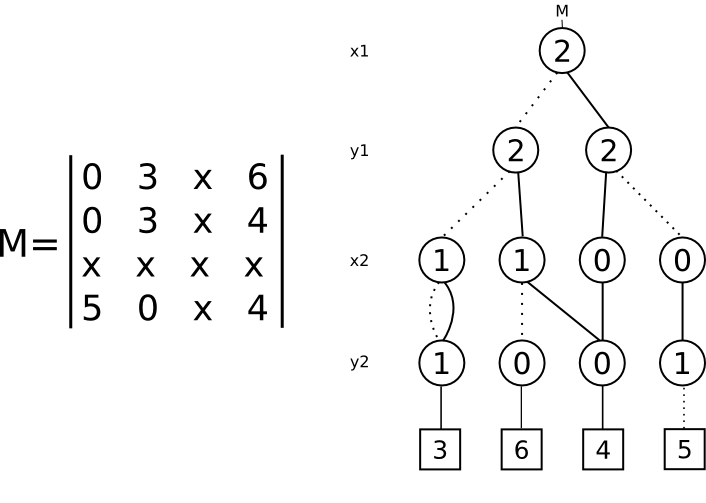

(First improvement (PRISM))

• Eliminates stady-state
  • those generates zeros on iteration vectors which never change
  • improvemen : make solution vector more compact / less memory usage

Algorithm :

• add skipped levels
• add an offset in each node.
  • For row node, offset will indicate how many reachable rows there are in the top submatrix
  • For column node, offset will indicate how many reachable columns there are in the left submatrix

(First improvement (PRISM))

(Second improvement (PRISM))

MTBDD is a recursive structure. Each node is an MTBDD.

• In a Matrix MTBDD, each node is a sub-matrix of the original matrix.
• In the sub-matrix, indices are relative to the matrix, adding an offset depending on the path taken from the root to the injected matrix.

• Add explicit sub-matrix as a cache copy of nodes of a specific level.
• In matrix - vector product, stop in those nodes instead terminal nodes.
• Matrices are injected in all the nodes of a specific level depending on memory usage.

Problem

Try to divide the problem in parallel independent tasks, each task must be solved by a block of threads.

• Posible solution: one task for each path between root and inj. submatrix (Path instance). Store an explicit representation of the path.
  • Task representation : (row, column, submatrix)
    • row and column are integer which represent the relative row and column
    • submatrix is a pointer.
  • Posible number of task ?
    • First level -> One task, One matrix (explicit engine) -> A lot of memory.
    • Last level -> ~$3 . 10^9$ task , ~ aprox $100$ matrices of size $1 \times 1$ -> A lot of memory.
  • Other levels?

The final amount of memory is the sum of task representation and injected matrix representation.

I believe this was the "main observation of the work".

• Injected matrices are in COO representation $\to$ vector of tuple (r, c, value).

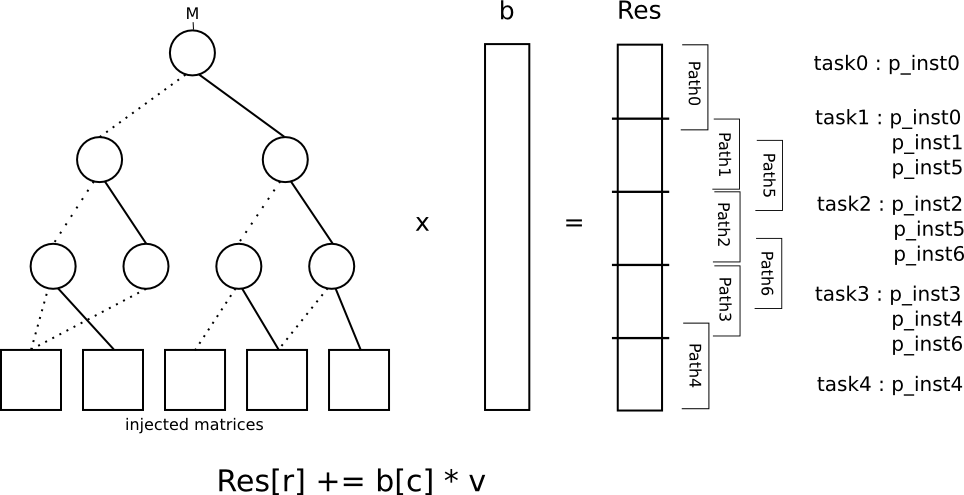

• Divide the result vector in slices of fixed size [256].

• Each task processes a slice of the result vector (Group of path instances).

  • Task representation : group of path instances which fall inside of the slice.
  • New kind of path instance : (row, column, *sm, offset_begin, offset_end)
    • offset_begin is the first element in sm vector of tuples which falls in the slice.
    • offset_end is the first element in sm vector of tuples which doesn't fall in the slice.

• offset-labelled MTBDD $\to$ same memory than the hybrid engine
• 2 * iterative vectors $\to$ same memory than the hybrid engine
• diagonal vector $\to$ same memory than the hybrid engine
• b vector $\to$ same memory than the hybrid engine, in general it is zero!

New memory requirements :

• injected matrices + path instances

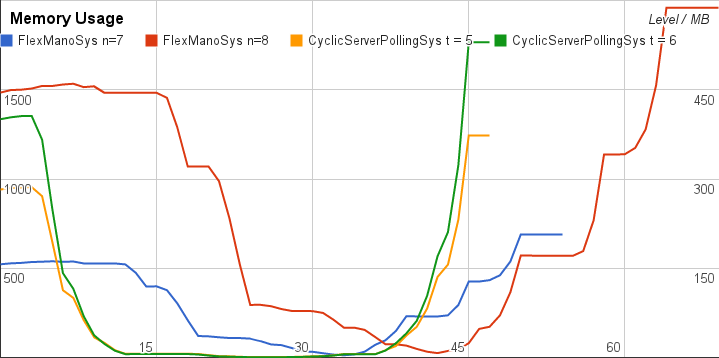

where to inject matrices ?

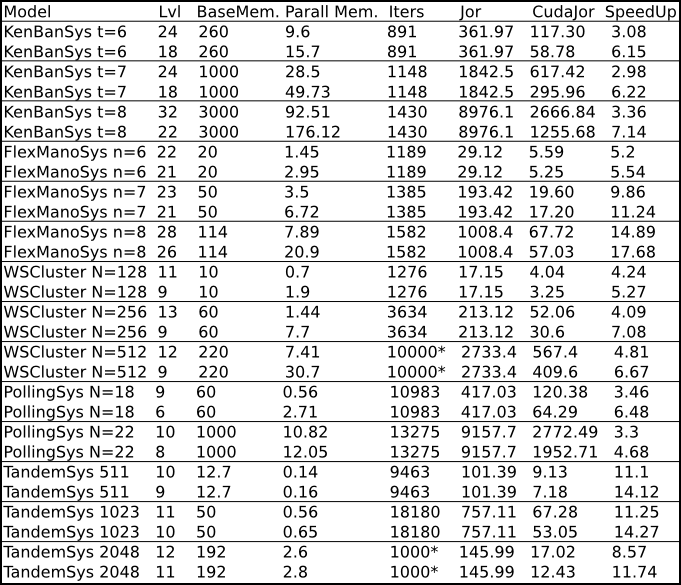

• lavel with minimum memory usage $\to$ around 4 time faster, use not too much memory
• some lavel down (2, 3 o 4) $\to$ avg 10x faster, up to 18x in some examples, less than 10% of the iteration vector size in memory usage.

Figure out a euristc to define

"some level down the level of minimum memory usage."
